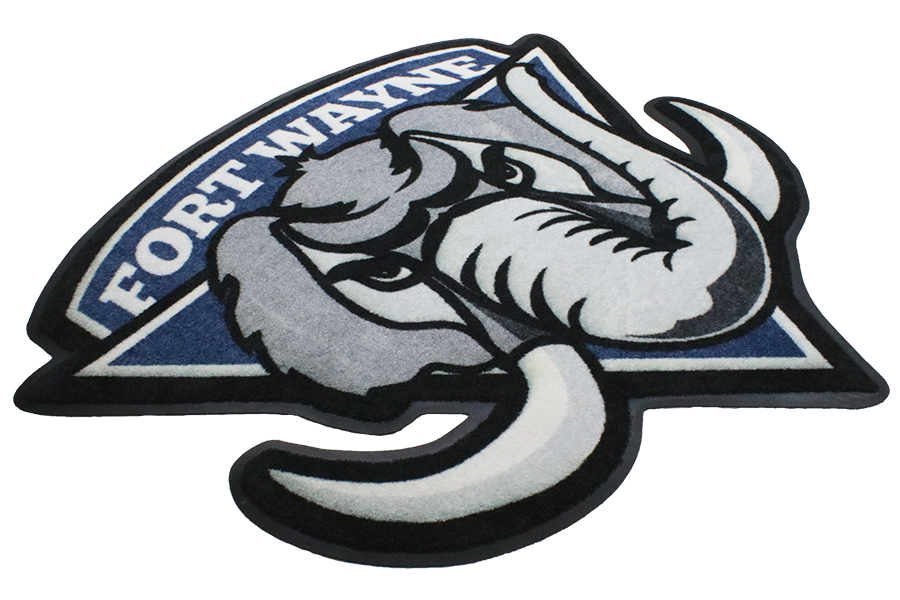

DigiPrint HD Custom Shape

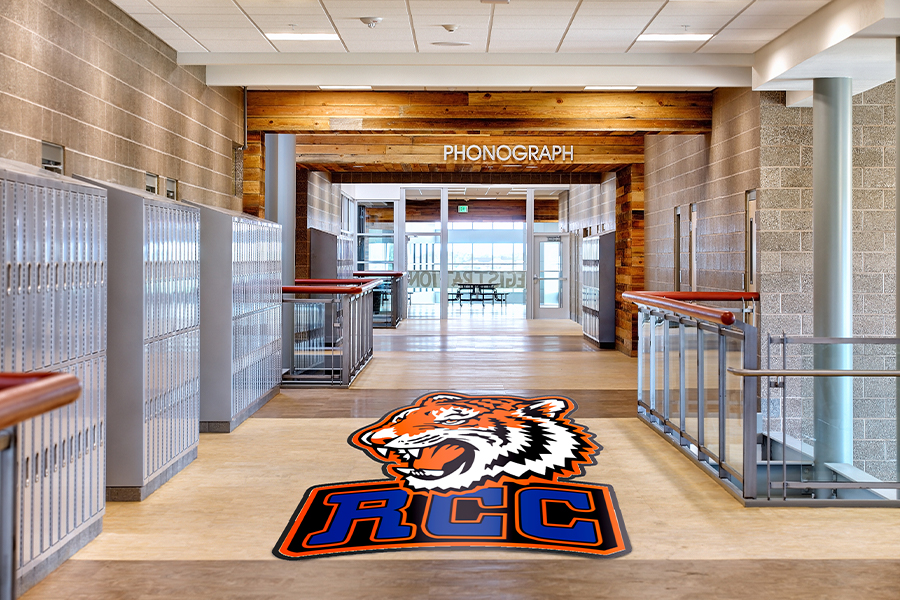

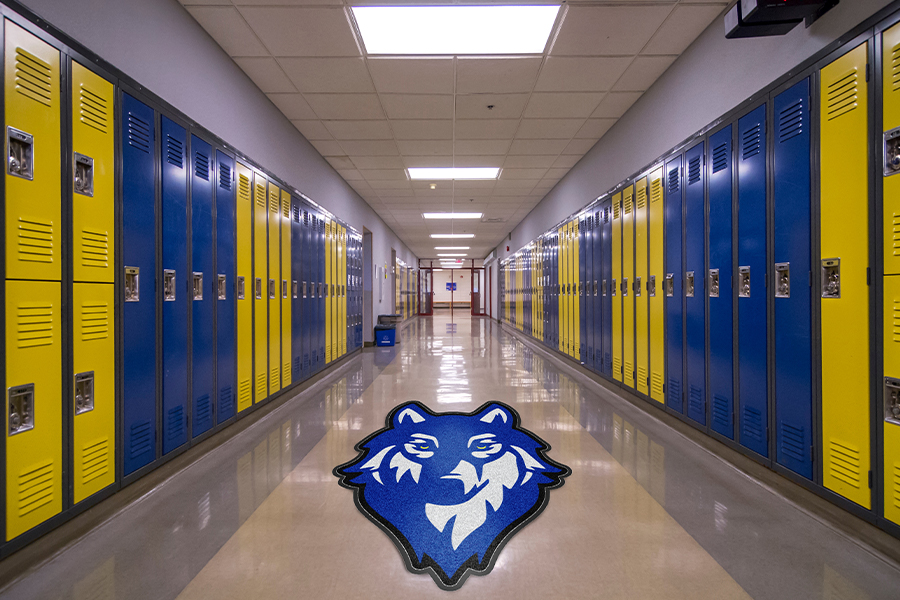

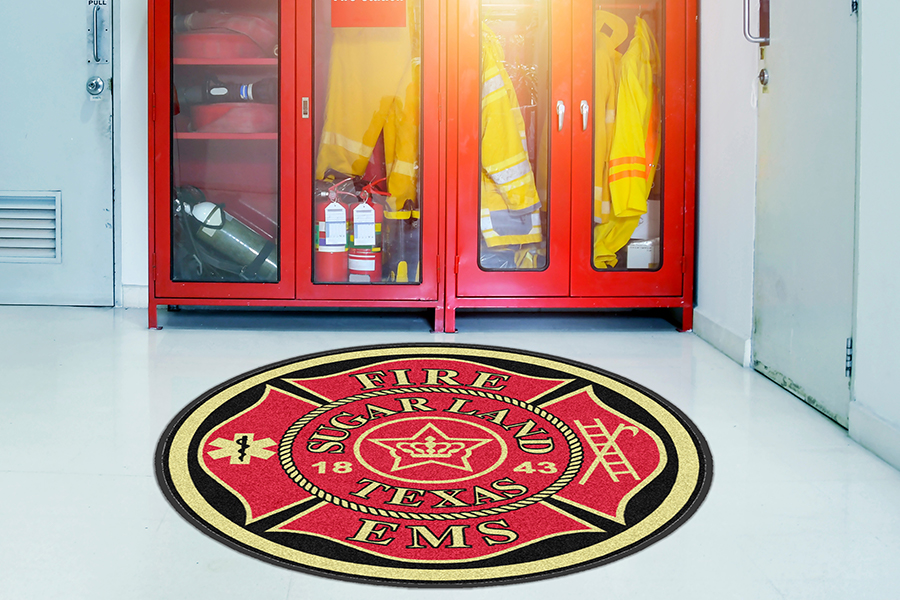

Recommended for indoor commercial use at entryways, in lobbies, at front desks or anywhere you want to display your company logo or message.

In order to design a custom cut DigiPrint HD, please stay within the maximum 6' width of the carpet used for this product.

SURFACE
Yarn: PET (polyethylene terephthalate) printed/disperse-dyed yarn
Weight: 32 ounces/yard²
Construction: Cut pile
Substrate: Freudenberg LUTRADUR® polyester spunbond non-woven fabric 3.8 oz./yard² (130 grams per square meter)

BACKING
Material: Nitrile rubber - smooth or universal cleated
Thickness: Heavy duty 90-mil (body thickness 90-mil; border thickness 90-mil)

OVERALL MAT THICKNESS: 3/8 inch (0.375")

STANDARDS & TESTING

• Passes DOC-FF1-70 for the surface flammability of carpet
• Passes flammability tests EN ISO 11925-2 (2010) and EN ISO 9239-1 (2010)
• Passes BS 4790 (1987) determination of the flammability of textile floor coverings
• AATCC Stain Resistance Pile Floor Covering: Grade 10, no staining

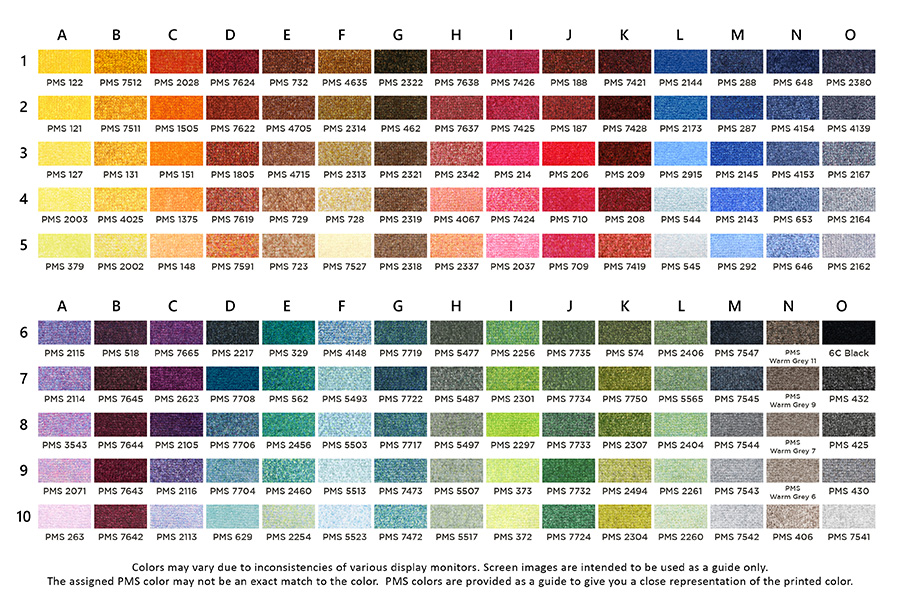

DigiPrint HD Custom Shape logo mats are produced using a layering process of color. Colors are matched to our standard palette of 150 colors.  PMS colors can be matched for an additional one-time fee of $580 per PMS color. A maximum of 4 PMS colors may be matched in any given design.

Minimum Text Height: 1" for serif fonts and 1/2" for sans serif fonts
Minimum Line Thickness: 1/8" except for white & light colors which should be at least 1/4"
These text requirements are for general use; however, special fonts and very thin letter forms may need to be made larger or thicker and will be approached on a case-by-case basis.

Light background colors should be avoided due to their tendency to show dirt on the mat more than a darker or neutral tone.  We also advise against the use of screens, tints, and transparencies in the design because they are not easily converted to our color palette.

For the best results, utilize the following cleaning method to clean your DigiPrint HD mat:

• Vacuum regularly (daily in high-traffic commercial areas; weekly in lower traffic areas).
• Extract or hose off as needed to remove heavy soil/debris.
• Hang mat to dry.

Always make sure the mat is dry before placing it back in service.

DigiPrint HD Custom Shape mats can be commercially laundered, though it may not be appropriate/recommended for certain shapes.  Proper laundering will prolong the life of the mat by preventing the buildup of soil and soap residue. DigiPrint HD Custom Shape mats are manufactured using PET Yarn.  PET is a type of polyester that needs to be processed using the proper chemistry to obtain optimal results. When PET products are exposed to oils, the yarn has an affinity to retain these oils.  We would recommend starting with 2 oz. of detergent per cwt., and 1 oz. of alkali per cwt, and add 4-oz. of hydrogen peroxide.  The level of chemicals required will depend on the type of accounts you service.  Please consult with your chemical supplier if you have additional questions or concerns.

1. Flush 2-3 minutes, medium water level, 120 degrees F (49 degrees C)
2. Flush (optional) 2-3 minutes, medium water level, 120 degrees F (49 degrees C)
3. Break 5-10 minutes, high water level, 120 degrees F (49 degrees C)
4. Rinse 2 minutes, high water level, cold
5. Rinse 2 minutes, high water level, cold
6. Extract (low speed) 1-2 minutes
7. Shake out (rotate wheel at wash speed with drain open) 1 minute
8. Extract (high speed max - 250 Gs) 3-5 minutes
9. Dry 5-10 minutes, 180 degrees F (82 degrees C) basket temp.
10. Cool down 5 minutes
11. Lay mats flat following removal from washer or dryer. Allow to cool before rolling.

For heavy soil mats, increase temperature to max 140 degrees F (60 degrees C).  Break should not exceed pH of 9.5; use low pH non-ionic detergents.  Do not over-dry mats; basket temperature of dryer should not exceed 180 degrees F (82 degrees C).  If mats are not dried, final rinse can be increased to 140 degrees F (60 degrees C).  This will reduce moisture retention following extraction.
